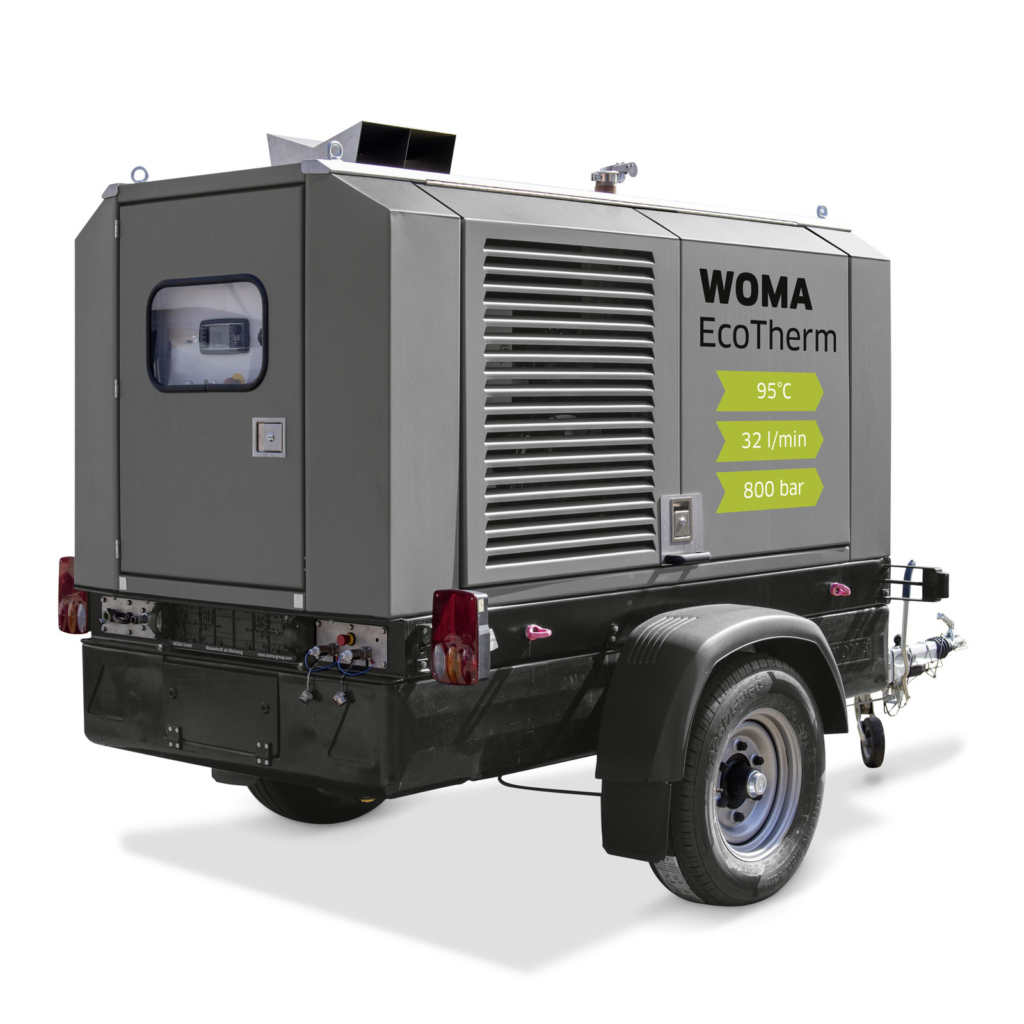

EcoTherm (Hot Water) EcoTherm 800/32
EcoTherm 800: Compact Design, High Performance, Highest Safety
With up to 95 °C hot water, facades, small pipes, industrial flooring and other surfaces can be easily cleaned, oil and grease washed away and coatings removed.

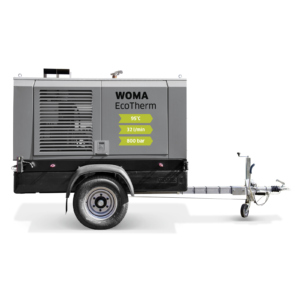

The compact and weight-optimised single-axle trailer is approved for towing at up to 80 km/h (optionally 100 km/h) and can be brought to site with almost any middle-class car.
The easy to understand control with operational status monitoring, pressure/rpm regulation and pressureless circulation ensures high operational safety, low wear and tear, a long service life and minimal fuel consumption.
In the basic and standard configuration the booster pump can be delivered in a stainless steel variant instead of the standard cast construction.
The tank system with two chambers including a safety trough prevents the leakage of operational fluids such as fuel, oil or softeners.
“The EcoTherm is as effective as a 2,500 bar cold water unit for oily and greasy cleaning tasks.”
— German industrial cleaning contractor
THE ECOTHERM UNITS IN 100 SECONDS AT A GLANCE
A short overview of performance, the continuous flow heater and maintenance & service.

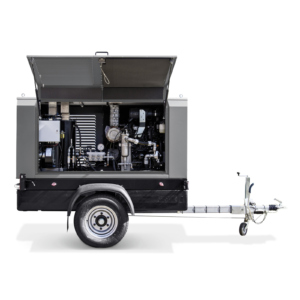

THOUGHT-OUT RIGHT DOWN TO THE VERY LAST DETAIL
POWERFUL UNIT COMPONENTS
70Y HIGH-PRESSURE PLUNGER PUMP
The ultra-high-pressure pumps of the Y-series are particularly compact. Due to the small size and low weight, they can be easily installed in units with very small base frames.
With operating pressures of up to 1,000 bar, the Y-series pumps are ideally suited to a wide variety of cleaning work, e.g. in the chemical industry, oil and gas industries as well as in ship cleaning. The sealing water system prevents leakage, enables a especially high durability of the high-pressure seals and counteracts the ingress of air. The coated steel plungers enhance wearing resistance and resistance to temperature shocks.
EFFICIENT DRIVE, POWERFUL CONTINUOUS FLOW HEATER
Engine: the water-cooled YANMAR 53 kW diesel engine with DPF is economical and robust and has an optional automatic start-stop function.
Continuous flow heater: automatic shutdown of the heating elements when there is no water supply increases safety and saves energy costs.
CENTRAL CONTROL UNIT
The unit and the continuous flow heater are operated via a common, modern and intuitive control with a 4.3" display.
With integrated PLC and CAN master capability, this is the perfect solution for high-pressure applications that require an innovative control and visualisation system.
RADIO REMOTE CONTROL: ROBUST AND ERGONOMIC
The radio remote control offers maximum operating comfort based on the latest technology and is suitable for use with diesel-powered high-pressure units. It has a radio range of up to 300 m and an operating time of up to 8 hours.
The intuitive graphical user interface offers the highest level of operating comfort: in addition to displaying the operating parameters and any fault messages that occur, it also enables bidirectional communication with the high-pressure unit.
AN EXTRACT OF THE MANY CLEANING POSSIBILITIES WITH HOT WATER
SPECIFICATIONS
Technical data
| Max. operating pressure | 800 bar |
| Max. flow rate | 32 l/min |
| Motor type | Diesel |
| Max. motor rating | 53 kW |
| Max. water temperature | 95 °C |
| Heating oil tank | 175 l |
| Water tank | 75 l |
| Fuel tank | 175 l |
| Weight incl. operating material approx. | 2100 kg |
| Dimensions approx. (L x W x H) | 4150 x 1950 x 2260 mm |
EQUIPMENT
- 30 m remote control cable 24 V or EXI
- High-pressure gun with remote control connection 24 V or EXI
- High-pressure hose: 20 m, ID 8
- Round jet nozzle: 1 piece
- Flat jet nozzle: 1 piece
APPLICATION
- General cleaning of parts and surfaces
- Cleaning of ship hulls and buoys
- Screen and filter cleaning
- Pipe cleaning
CONFIGURATION OPTIONS
- Control interface water tool EX-i
- Start-stop system for the diesel engine
- Operating mode extension: maintaining rotation speed after high-pressure off
- Operating mode extension: high-pressure on/off via control cabinet
- Telematics (in combination with a telematics contract)
- High-pressure manometer for pressure control
- Storage package for water tools and unit accessories
- Crane lugs
- 100 km/h road approval
FITTING WATER TOOLS AND ACCESSORIES FOR YOUR APPLICATIONS
Basic equipment (optional)
High-pressure gun HP 1500-EEXI
Round jet nozzles
Flat jet nozzle
Hot water high-pressure hoses
Supply hose
Control cable
Application tools
Surface cleaning: Turbo nozzle 3000 - SCS, Orbimaster 800, FloorMaster 24V
Tank cleaning: TankMaster S 1500, TankMaster SL 1500
Pipe cleaning: Whirl disc
