High-pressure gun HP750 S-V
Home › Woma Group › Water Jetting Tools and Accessories › High-pressure guns › High pressure guns up to 750 bar › High-pressure gun HP750 S-V
High pressure guns up to 750 bar High-pressure gun HP750 S-V

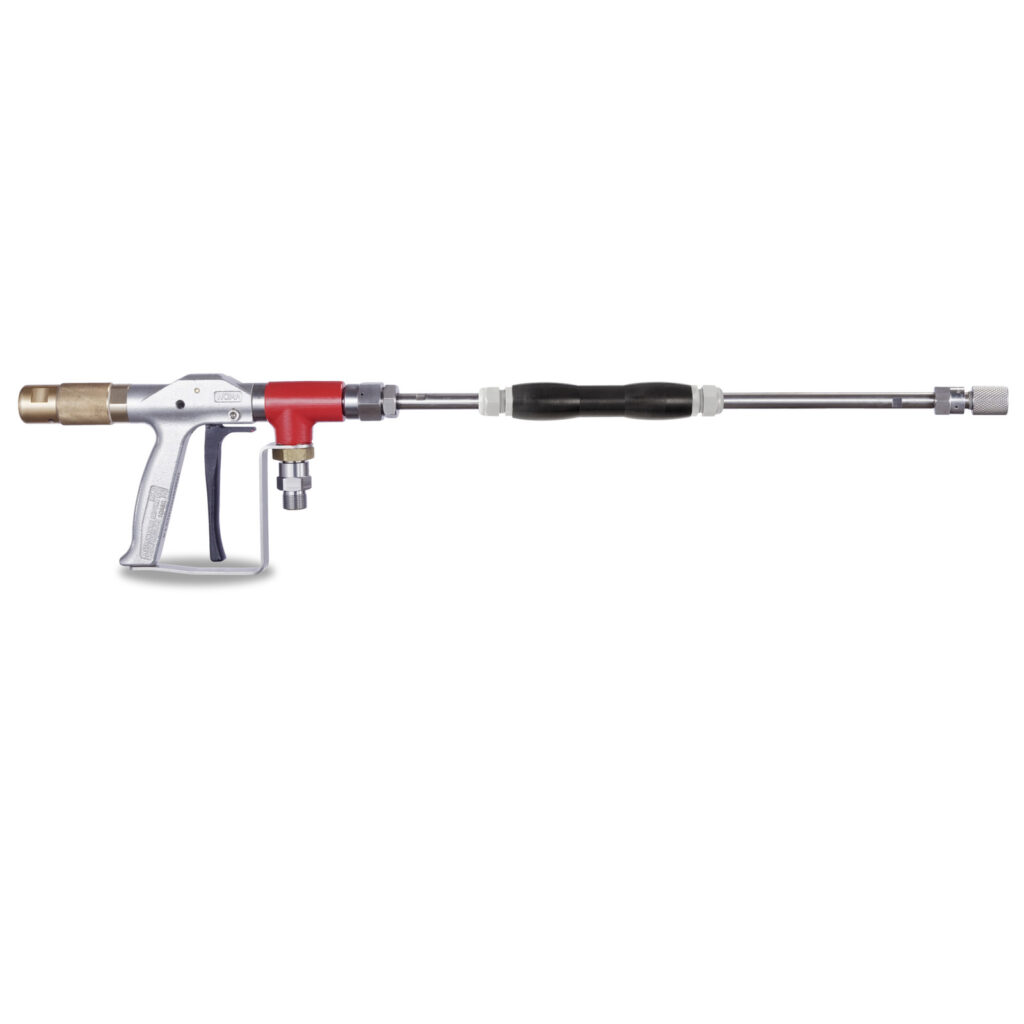

The HP 750S-V high-pressure gun is suitable for spray work up to 750 bar.

Brand: Woma
Series: High pressure guns up to 750 bar
Product: High-pressure gun HP750 S-V
Order number: 9.914-078.0
REQUEST OFFER
ASK ON WHATSAPP
‹ Back to seriesThe gun has a mechanical valve which closes immediately and seals securely when the trigger is released. This is fitted with trigger guard and rotary joint as well as a light metal hand grip and a forged steel pressure housing as standard. The high-pressure HP 750S-V gun is especially suitable as an accessory for WOMA devices in the Classic series.
Technical data
| Operating pressure | max. 750 bar |
| Flow volume | max. 65 l/min |
| Inlet temperature | max. 50 °C |
| high pressure input | M22 x 1,5 |
| high pressure output | 9/16 - 18 UNF LH |
| Weight | 2,7 kg |
| Dimensions | 350 x 250 x 140 L × W × H |
