Turbo nozzle TD-C
Home › Woma Group › Water Jetting Tools and Accessories › Surface Preparation › Attachment tools › Turbo nozzle TD-C
Attachment tools Turbo nozzle TD-C

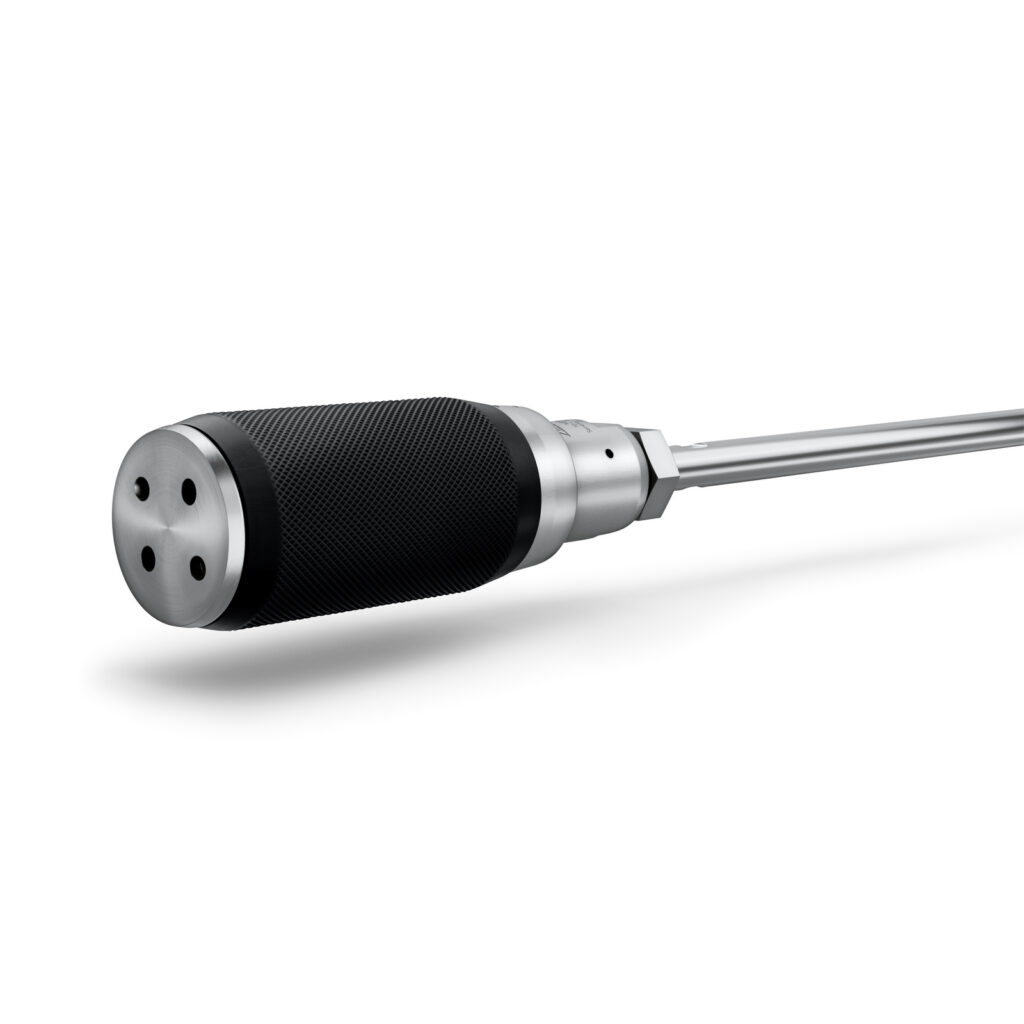

The TD-C turbo nozzle is used for industrial cleaning, surface treatment and removal tasks.

Brand: Woma
Series: Attachment tools
Product: Turbo nozzle TD-C
Order number: 9.919-271.0
REQUEST OFFER
ASK ON WHATSAPP

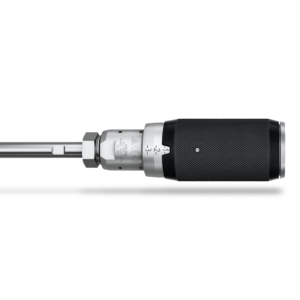

‹ Back to seriesThe TD-C turbo nozzle is used for industrial cleaning, surface treatment and removal tasks. The waterjetting tool with a rotating nozzle carrier head has a 3-stage adjustable speed setting via an intuitive slider and has excellent removal performance. The nozzle can be operated in a pressure range from 500 to 3000 bar with a maximum nominal flow rate of 45 l/min.
Technical data
| Operating pressure (bar) | max. 3000 |
| Flow volume (l/min) | max. 45 |
| Inlet temperature (°C) | max. 95 |
| Speed (rpm) | 500 - 4000 |
| high pressure input | 9/16"-18 UNF-LH |
| suitable nozzles | Nozzle Form 21 |
| Number of nozzles (Piece(s)) | 4 |
| Diameter (mm) | 54 |
| Weight (kg) | 1,2 |
| Dimensions (L × W × H) (mm) | 174 x 54 x 54 |

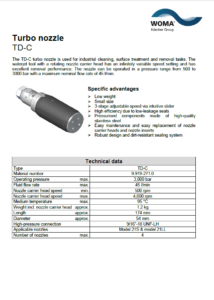

Product data sheet
⇩ Download

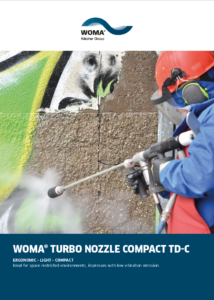

Brochure
⇩ Download
